Demo: Click the picture above or here to watch the Instructional PC-2200 Video Demo
Identifies
Particle Quantity and Size from 0.5µm to 100µm diameter. Operates with
both Flowing and In-situ Liquids. The
new "slim-line" PC-2200 functions exactly like the PC-2000
but has improved electronics and weighs only 6 lbs, less than half
that of the PC-2000. FEATURES
|

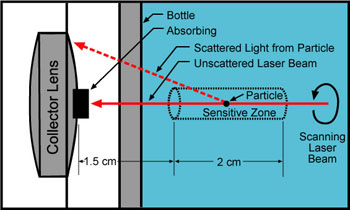

Optical Schematic of the Laser Particle Counter
Detailed Laser optics
|
OPERATION THEORY
Utilizing
the principle of "near angle light
scatter", a revolving laser beam passes through the walls
of
a glass container of a flow-thru cell. When it is directed through
a central "sensitive zone" the PC-2200 not only counts
the particles in suspension, but tabulates their size as well.
The
analog signals generated by the light pulses are routed to a computer
and digitized.
|
CALIBRATION
Spectrex
provides three sealed calibration standards
with each unit. Each standard contains a precise number of NIST
traceable polystyrene spheres of known size in suspension and
are
sealed with inert Argon gas. These standards have a proven stability
of more than 10 years and provide efficient calibration within
10
minutes.
|
The PC-2200 with Light-tight cover and Desktop Computer
|
The PC-2200 with Laptop Computer
|
APPLICATIONS
- Water
Treatment Plants
- University
Laboratories
- Pharmaceutical
Manufacturers
- Oil
Refineries and On-site drilling
- Bottling
& Beverage Operations
- Oceanographic
Studies
- Hydraulic
Fluids and Oil QC
- Liquid
Chromatography Solvent QC
|
- Cooling
Tower and Waste Water Filter Efficiency
- Particle
Agglomeration Studies
- Silts
and Sediment Sizing
- Particle
Settling Characteristics
- Corrosive
Chemical and Solvent Sizing
- Vial
and Ampule Inspection
- De-ionized
Water and Acid Testing
- Cell
Counting
|
SuperCount
SOFTWARE
Developed by Spectrex, the custom interfacing electronics
and proprietary software provide an easy means of analyzing and saving
data generated by the PC-2200. SuperCount provides instant sizing information
and histogram of size distribution in addition to indicating:
- Absolute
Counts
- Mean
Size
- Mass
Distribution
|
- Percentage
Distribution
- Standard
Deviation
- Total
Suspended Solids
|
The
dilution factor can be automatically computed to give absolute count for
liquids as dense as sludge! SuperCount also is loaded with a special bonus
program for hydraulic fluids* and Phi classifications. OPTIONS
 |
- Opacity Meter
- provides an instantaneous measurement of the sample's opacity to correlate
with computer calculations.
|
 |
- Small Vial
Attachment - for use with 5ml vials or ampules.
|
 |
- Flow-Thru
Cell - Spectrex stocks various sizes of flow-thru cells and can manufacture
cells to customer specifications. Cells are also available for testing
at high pressure and temperatures.
|
SPECIFICATIONS
- Size: 4.75 "
x 14 " x 4.5 " (height with Light Tight Cover is 5 ")
- Typical
bottle size: 15-60 mm inside diameter
- Bottle Material:
transparent, scratch-free glass
- Weight:
6 lb.
- Power: 115v
60Hz (230v optional)
- Detectable
Particle Size: from 0.5µm - 100µm
ORDERING
INFORMATION
Order directly from Spectrex Corporation. Lease-to-buy
options and quantity discounts are available.
Click here
to contact our product representitive for
Germany, Switzerland, and Austria.
Click here to watch Instructional PC-2200 Video Demo
PC2200 Price Request on Secure Form USERS
OF THE SPECTREX LASER PARTICLE COUNTER Click
here for Sample Print-out APPLICATION NOTES Particle Counter Software Download Page
(requires password)
