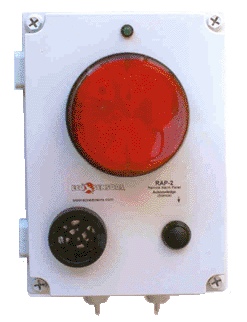

The RAP-2 Remote
Alarm Panel is for alarming when signals from ozone monitors reach
preset limits or set points. The alarms are a red strobe light
and a loud audible alarm (90 dB at 3 meters). There is also a
digital readout in PPM of ozone. The RAP-2 also outputs its
input signal in 4.20 mA form for building automation systems and
other applications requiring long signal paths. The RAP-2 is
powered by the 12 VDC powering our instruments or can use an independent
non regulated 12 VDC supply. This remote alarm panel is usually
used with the Eco Sensors C-30Z, C-30ZX, EE-1, EE-2 and 05.3.
It can be used with some other instruments by special order.
Price $500.00 USD
|
TYPICAL
APPLICATIONS
- Swimming
pools.
- Laundries
using ozone.
- Large noisy
factory environments.
- Casinos
and other ozonated public areas.
- Agricultural
storage areas.
- Farms.
- Food processing
plants.
FEATURES
- Rugged
PVC enclosure with hinged door.
- LED digital
display of ppm reading.
- Loud pulsating
audio alarm (90 dB at 3m)
with silencing button.
- Very bright
red strobe light.
- 4.20 mA
signal output.
- Automatic
resetting after gas level goes below set point.
- Alarm set
point adjustment.
- Span adjustment.
- Multiple
RAP-2's can be networked.
- First RAP-2
in a network to alarm becomes the "master" RAP
2.
- Uses easily
available 12 VDC power.
- Signal
voltage from instruments can be transmitted by inexpensive
twisted pair.
|
 |
|
