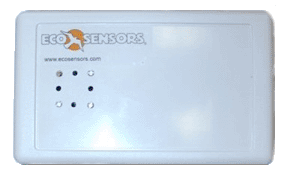

OZONE SOURCE CALIBRATOR

MODEL OG-3

Price $465.00 USD

The OG-3 ozone source calibrator is for calibration verification and simple approximate calibration of Eco Sensors ozone instruments.

FIt is available in either of two outputs: .1 ppm or 1 ppm. The OG-3 is powered by an AC adapter supplying 12 VDC.

The OG-3 uses a precision quartz UV lamp ozone generator. Its output is adjusted in our laboratory by comparison with a NIST traceable standard.


SPECIFICATIONS

  • Ozone Source: UV lamp
  • Output Ozone Concentration: .1 ppm (standard) or 1 ppm (upon request)
  • Accuracy: 10%
  • Warm-up time: 3 minutes
  • Temperature of use: Indoor room temperature
  • Size: 36 mm X 95 mm X 160 mm (1.41" X 3.75" X 6.30")
  • Weight: 255 grams (9 ounces)
  • Power requirement: 12 volts DC at 300 mA.
  • Warranty: One year
